  • En stock
  • Inventario en el camino
€199,90 €159,00
/
Impuesto incluido.

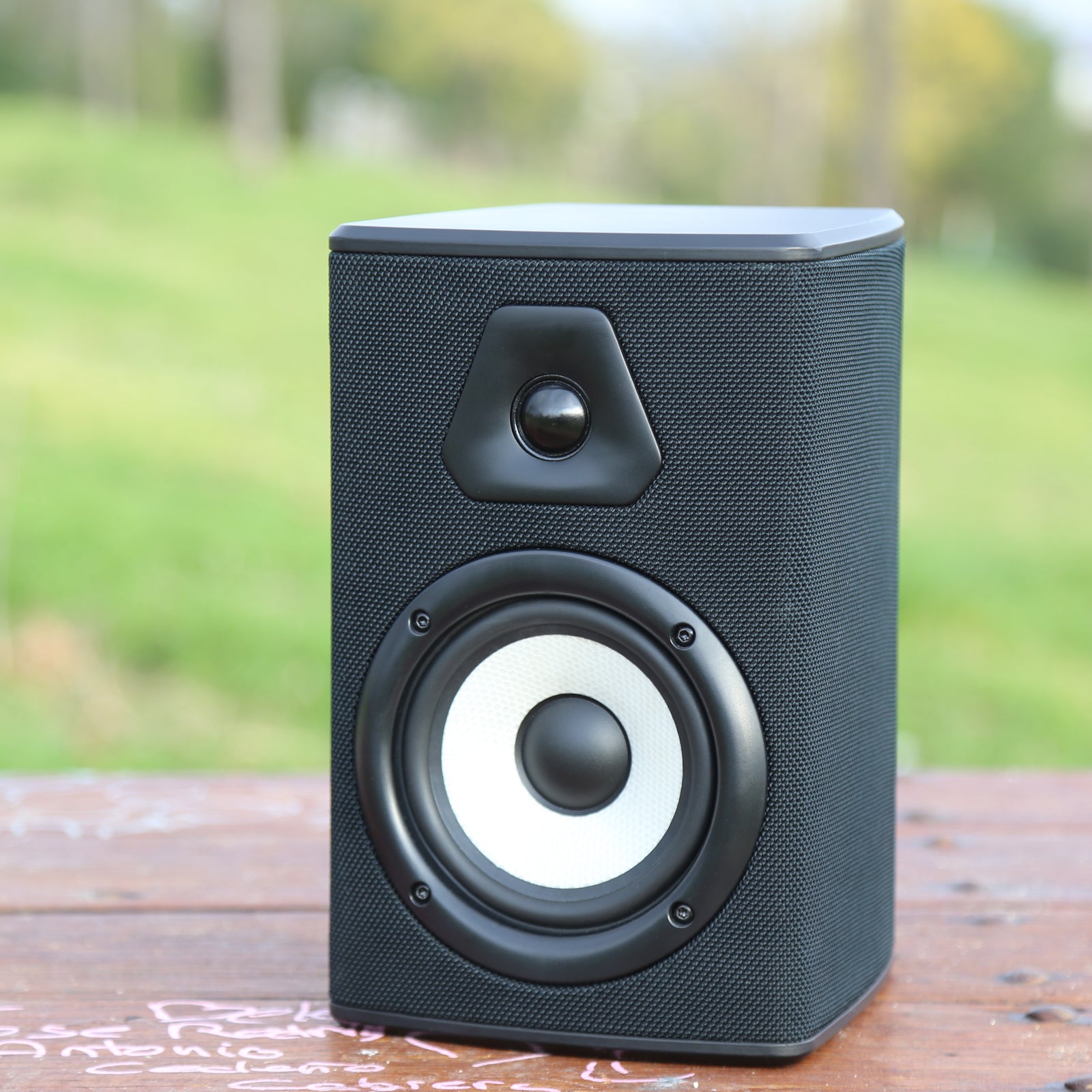

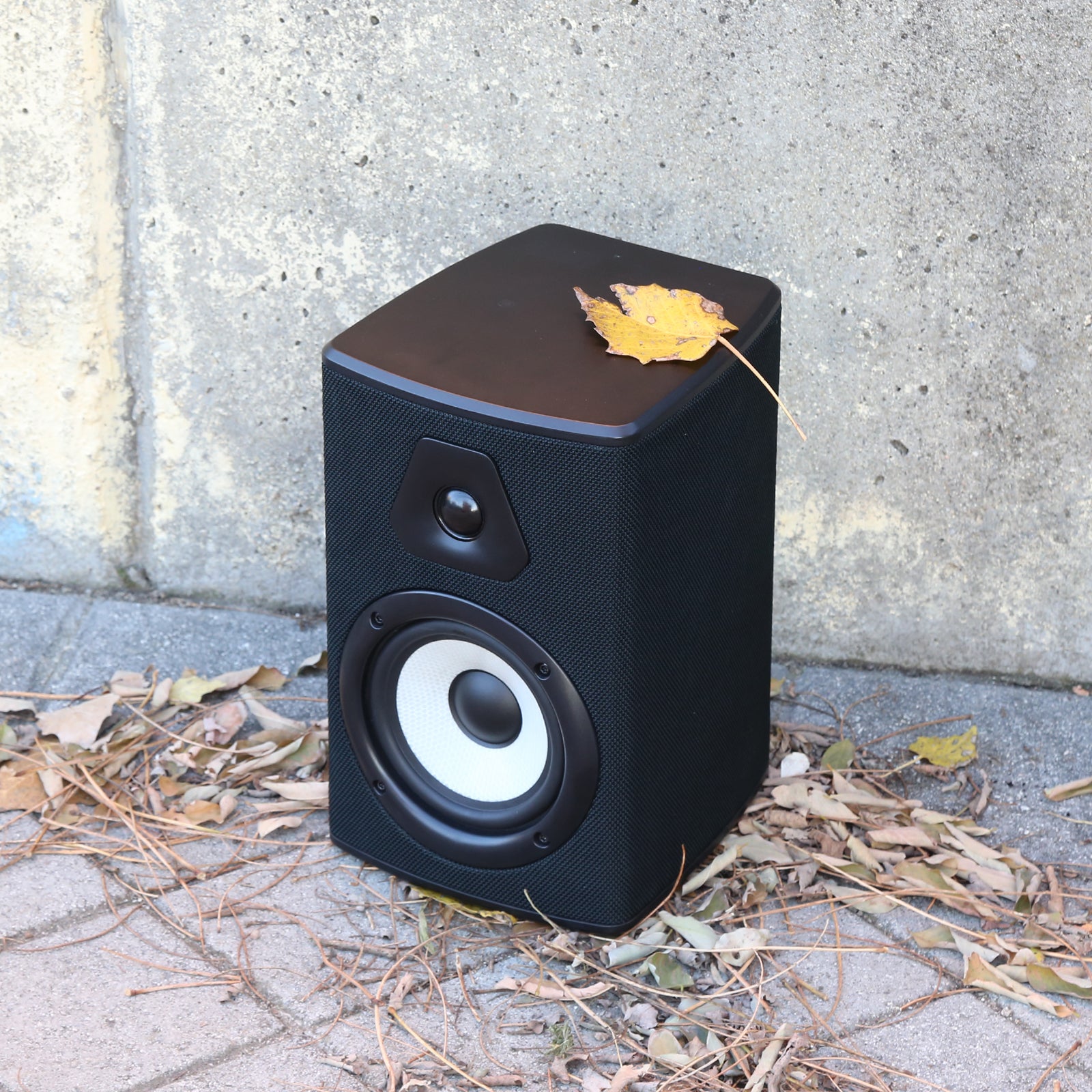

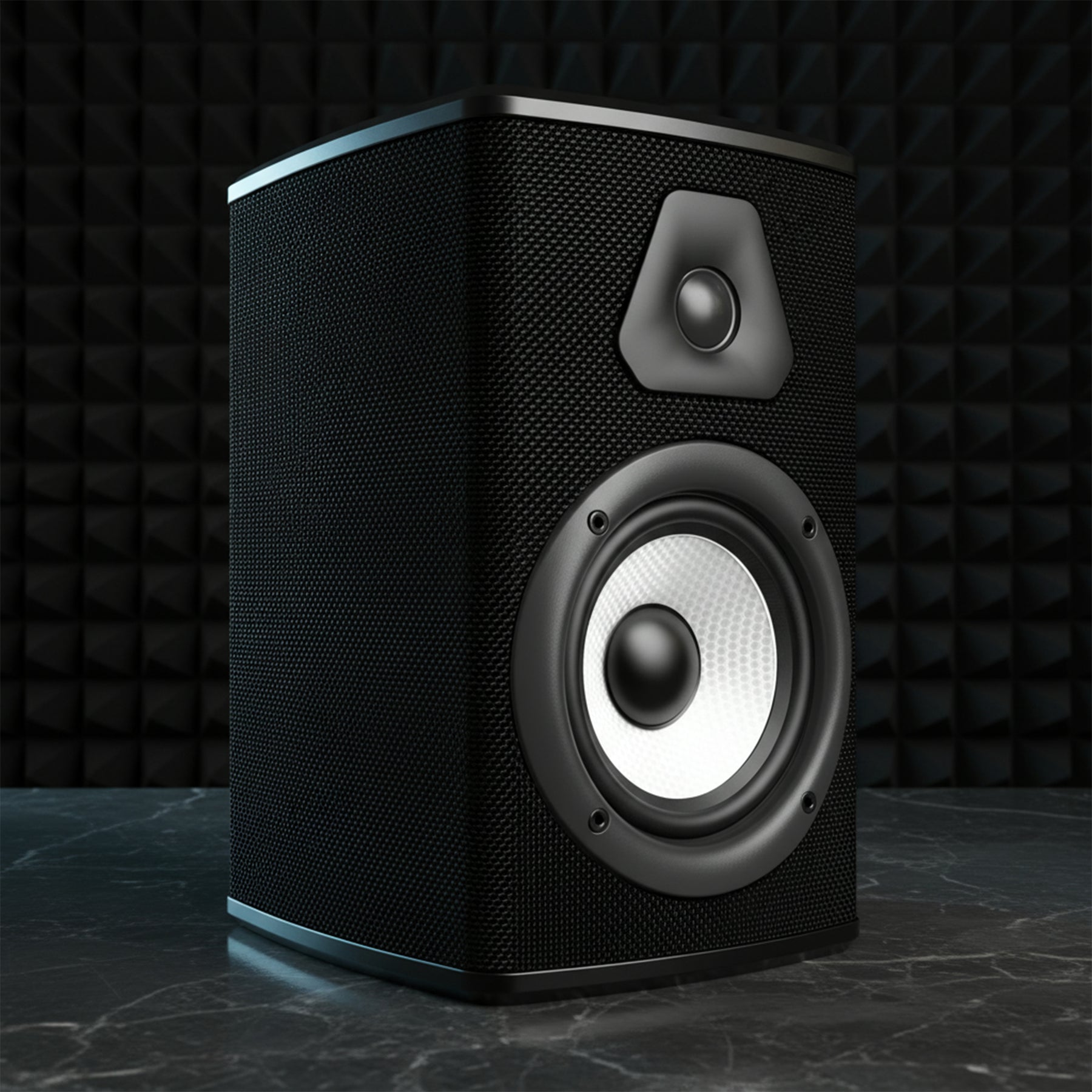

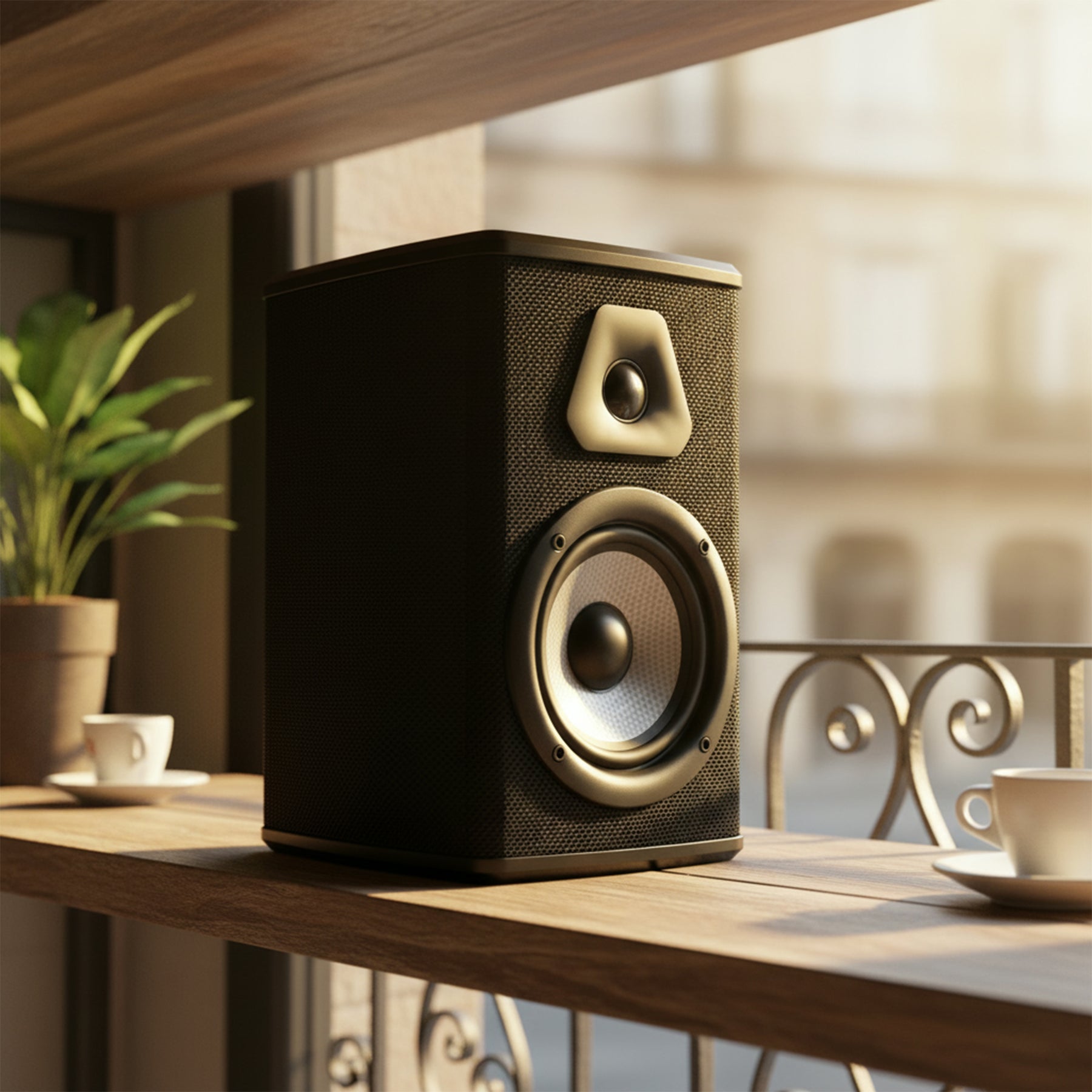

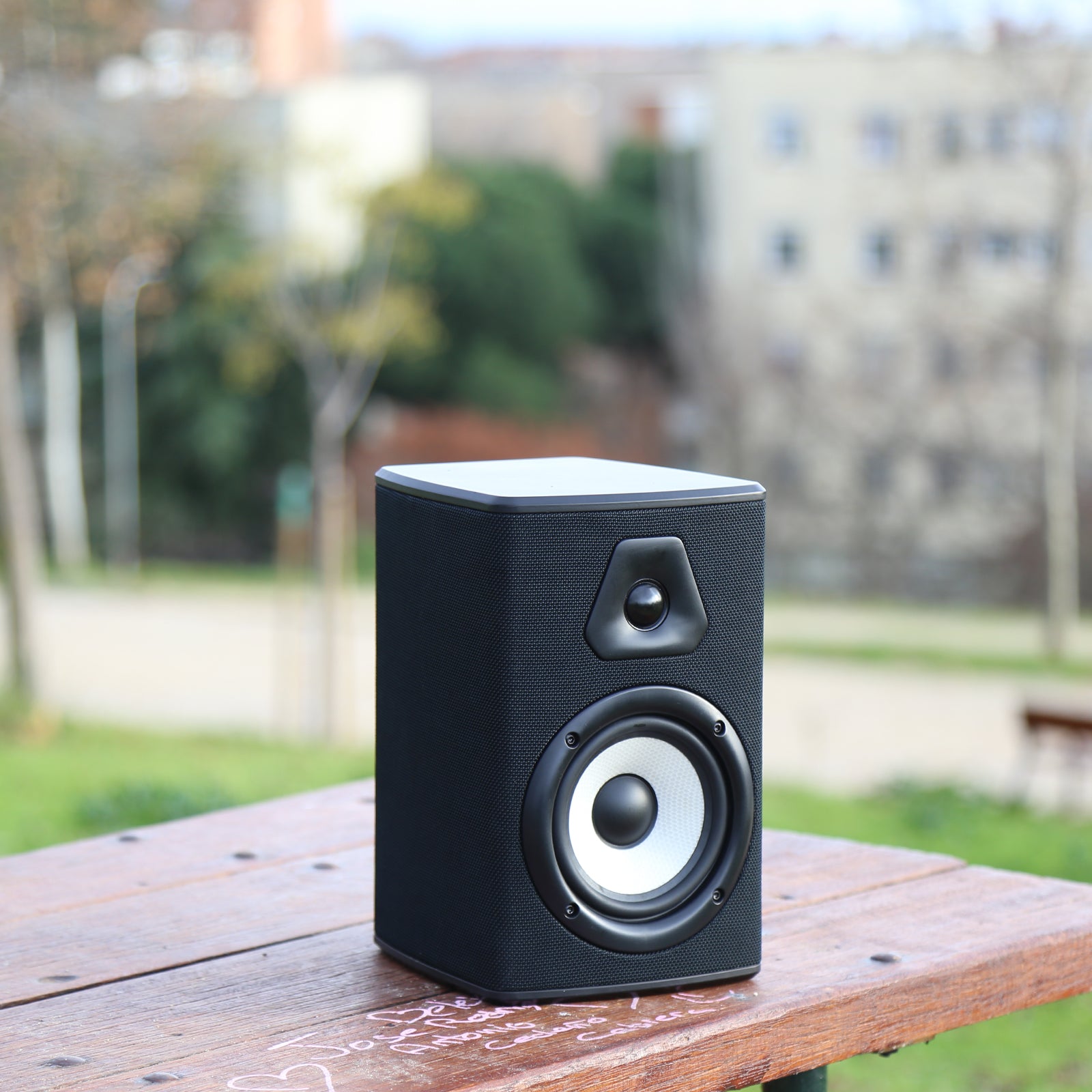

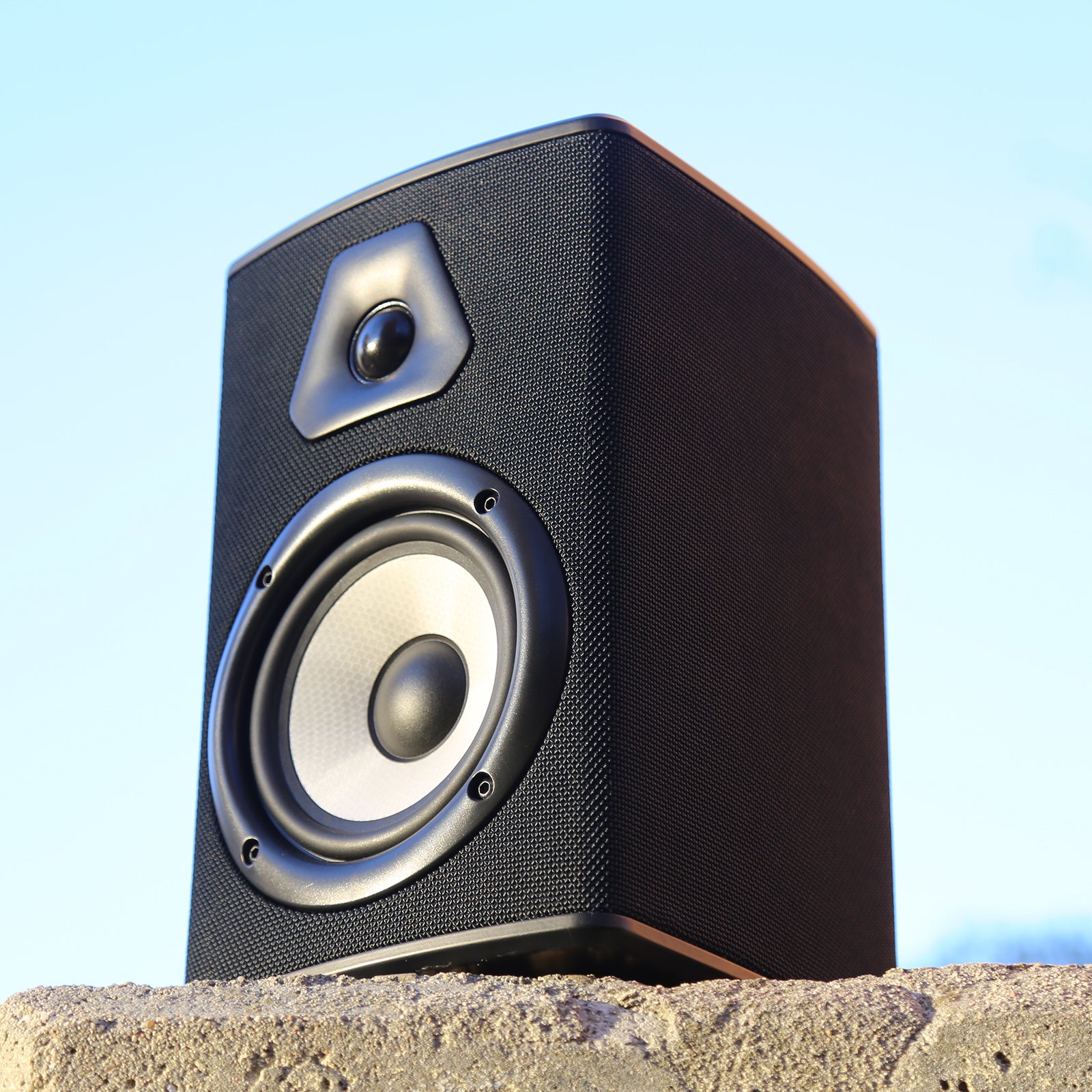

The Loud Yield Luna-5 is a compact, precision-engineered studio monitor designed for accurate, fatigue-free listening in professional and creative environments.

  • 5" low-distortion woofer delivers tight, controlled low-frequency response
  • 1" silk dome tweeter provides smooth, detailed high-frequency reproduction
  • High-fidelity Class AB amplification ensures clean, natural sound with low noise
  • Rigid MDF cabinet with rear venting minimizes resonance and enhances bass clarity

With versatile connectivity options including XLR, 6.3 mm TRS, 3.5 mm AUX, and Bluetooth, the Luna-5 integrates seamlessly into home studios, content-creation setups, and commercial spaces.

Built-in Room Control and High Trim tuning allow fine adjustment to match different room acoustics, making the Luna-5 a reliable monitoring solution wherever accuracy matters.

Frequency Response62 Hz – 20 kHz (-3 dB)
Maximum SPL87.4 dB SPL
Coverage Pattern120° × 90°
EnclosurePorted Vinyl-Wrapped MDF
Amplifier TypeClass AB Amplifier
Amplifier VoltageAC 230V ~ 50Hz
Power Amplification70 W total (60 W LF + 10 W HF)
LF Driver5-inch Kevlar Woofer
HF Driver1-inch Silk Dome Tweeter
Input TypesXLR / 6.3 mm / 3.5 mm / Bluetooth
Bluetooth Version5.0
Product Size (H×W×D)298 × 184 × 212 mm
Net Weight5.4 kg
ColorBlack
PowerAC 230V ~ 50Hz
Overall Dimensions298 × 184 × 212 mm

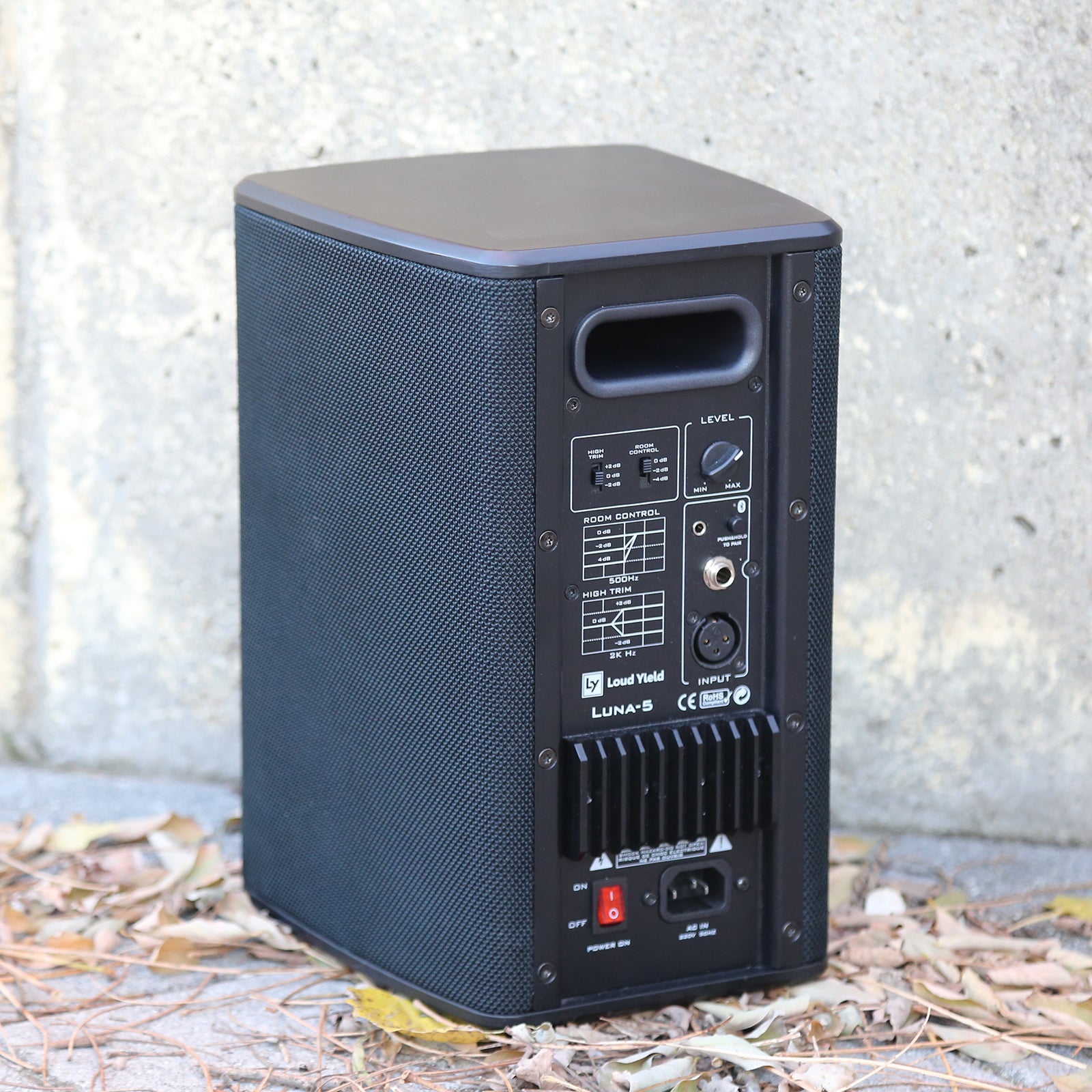

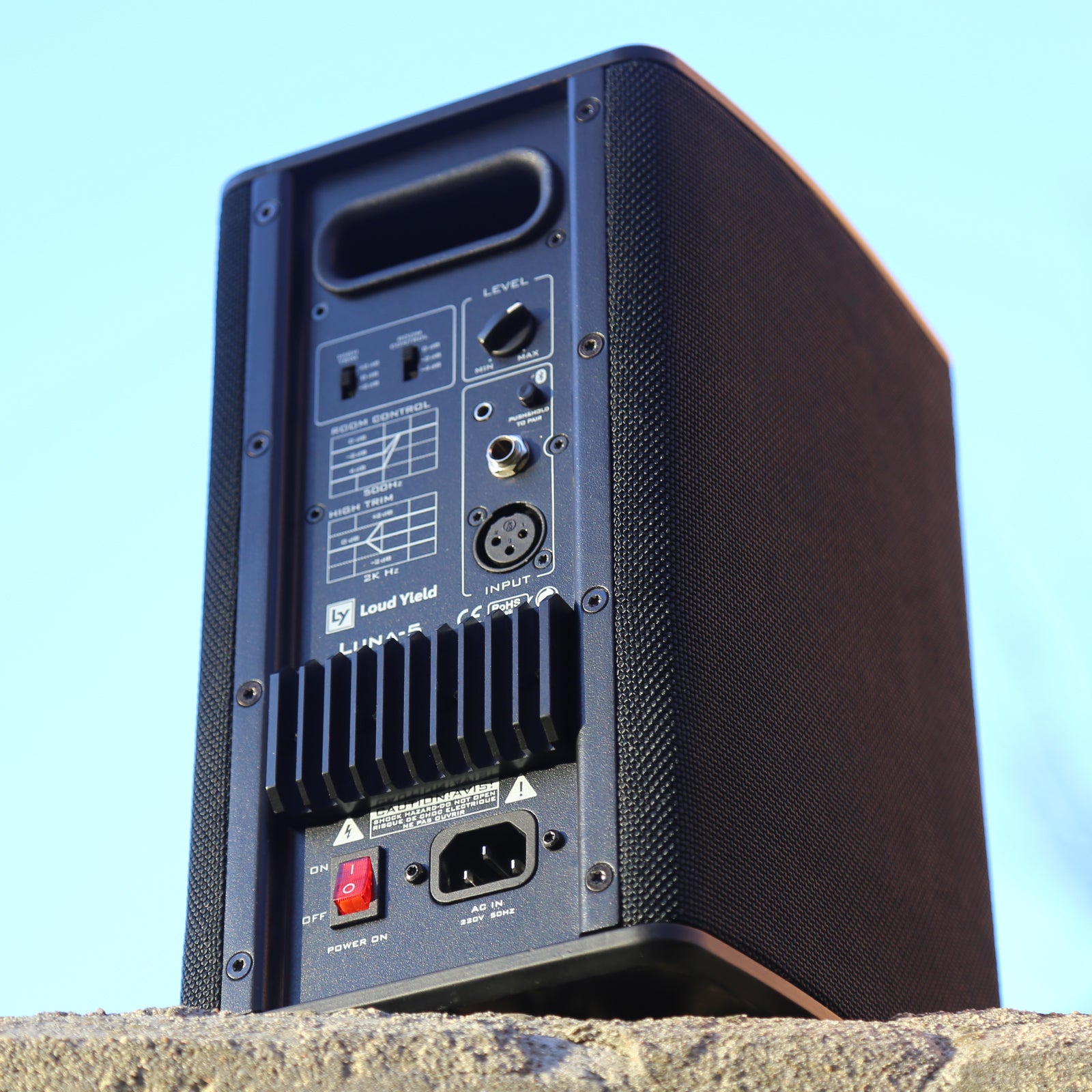

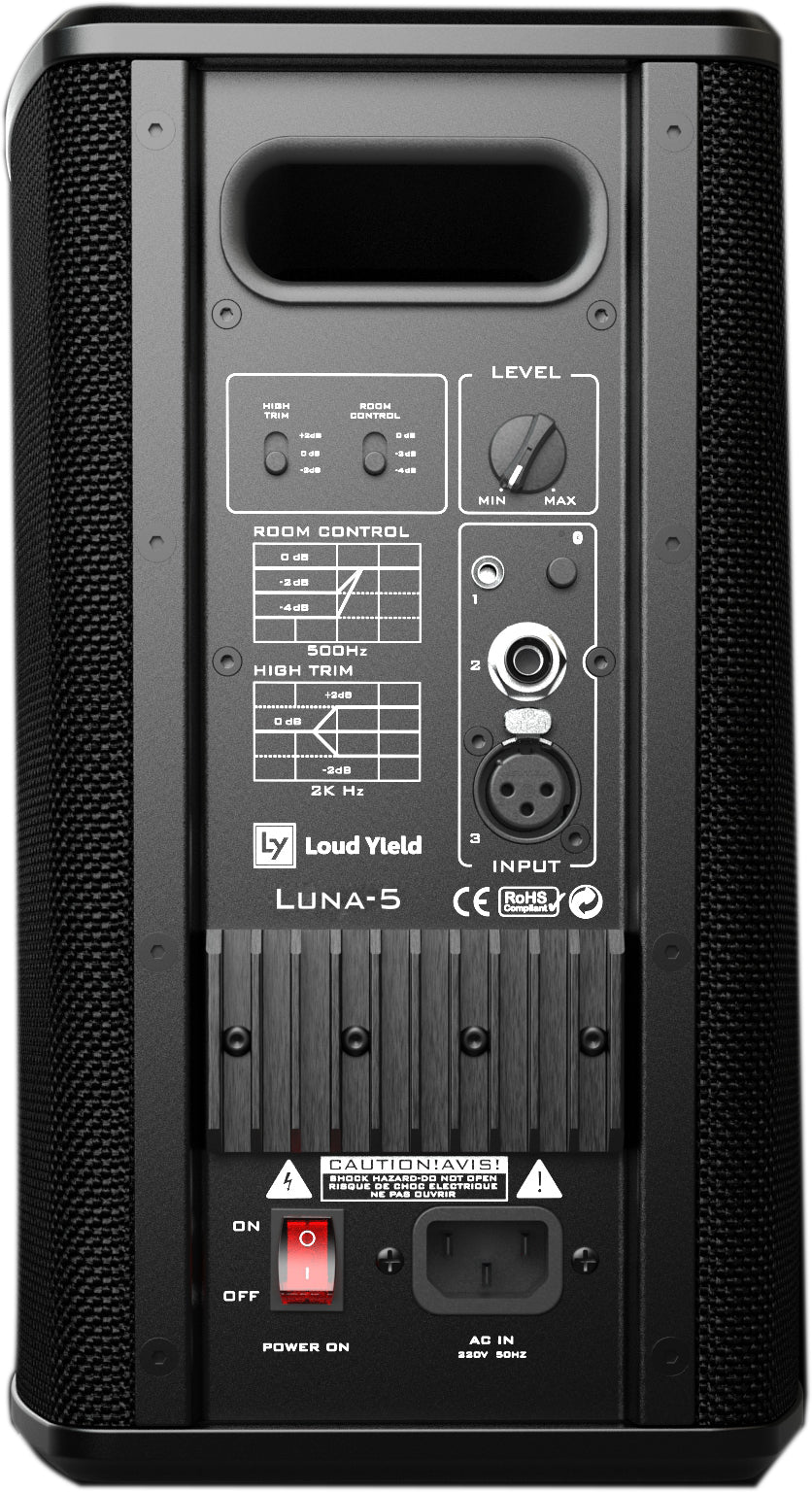

Luna-5 Rear Panel
1
2
3
4
5
6
7
8
9

1 HIGH TRIM

  • 0 dB: Flat frequency response
  • +2 dB: +2 dB boost above 2 kHz
  • -2 dB: -2 dB attenuation above 2 kHz

2 ROOM CONTROL

  • 0 dB: Flat low-frequency response
  • -2 dB: -2 dB attenuation below 500 Hz
  • -4 dB: -4 dB attenuation below 500 Hz

3 LEVEL CONTROL

Adjusts the speaker output level.

4 AUX INPUT

3.5 mm stereo auxiliary input.

5 BLUETOOTH

  • Short press: Bluetooth power on
  • Press and hold 3 s: Clear current pairing
  • Long press: Power off Bluetooth

6 BALANCED TRS PHONE JACK

6.3 mm (1/4") balanced TRS phone jack for professional audio sources.

7 BALANCED XLR INPUT

Balanced XLR connector for professional audio input.

8 POWER SWITCH

  • ON: Speaker powered, indicator light on
  • OFF: Speaker powered off

9 AC IN

AC power input (220 V AC, 50 Hz).

1 HIGH TRIM

  • 0 dB: Flat frequency response
  • +2 dB: +2 dB boost above 2 kHz
  • -2 dB: -2 dB attenuation above 2 kHz

2 ROOM CONTROL

  • 0 dB: Flat low-frequency response
  • -2 dB: -2 dB attenuation below 500 Hz
  • -4 dB: -4 dB attenuation below 500 Hz

3 LEVEL CONTROL

Adjusts the speaker output level.

4 BALANCED TRS PHONE JACK

6.3 mm (1/4") balanced TRS phone jack for professional audio sources.

5 BLUETOOTH

  • Short press: Bluetooth power on
  • Press and hold 3 s: Clear current pairing
  • Long press: Power off Bluetooth

6 AUX INPUT

3.5 mm stereo auxiliary input.

7 BALANCED XLR INPUT

Balanced XLR connector for professional audio input.

8 POWER SWITCH

  • ON: Speaker powered, indicator light on
  • OFF: Speaker powered off

9 AC IN

AC power input (220 V AC, 50 Hz).

Luna-5

• Model: LY-H5A / Luna-5
• Product Type: 5-inch 2-way active full-range speaker system
• Input Power (MAX): 140 W
• Frequency Response: 62 Hz – 20 kHz (-3 dB)
• Sensitivity: 87.4 dB (1W/1m)
• Amplifier Type: Class AB high-fidelity
• Amplifier Voltage: AC 230 V ~ 50 Hz
• Cabinet Material: 18 mm MDF, 25 mm front panel
• Finish / Coating: Black woven mesh + matte black paint
• Net Weight: 5.4 kg

Controls & Connectivity

• Controls: ON/OFF switch, Master Volume, Room Control, High Trim, Bluetooth ON/OFF

• Input Interfaces: XLR, 6.3 mm (1/4") jack, 3.5 mm AUX, Bluetooth

• Other Features: Remote/BT options (model-dependent)

Driver / Acoustic


• LF Transducer: 5" ferrite magnet woofer, 1.2" voice coil

• HF Transducer: 1" silk dome tweeter

• Distortion Control: Low-distortion driver design

• Enclosure Type: Vented enclosure

Dimensions

• Width × Height × Depth: 184 × 298 × 212 mm

• Net Weight (per unit): 5.4 kg
